BackGeode GNS3M National Geodetic Survey (NGS) Antenna Calibration Info (ANTCAL)
19 Oct 2023
The Geode GNS3 has been submitted and completed testing at the NGS Antenna Calibration test site.
The calibration is complete and has been uploaded to the NGS webpage under JUN - Juniper Systems, Inc.
To view the results, from https://geodesy.noaa.gov/ANTCAL/index.xhtml
- Choose Browse Antenna Information by Company Brand and Model
- Select JUN - JUNGEODEGNS3M
The Juniper Systems Inc information displays. The antenna code is JUNGEODEGNS3M. The calibration information can be accessed through the ANTEX and ANTINFO links and is listed in the antenna databases.

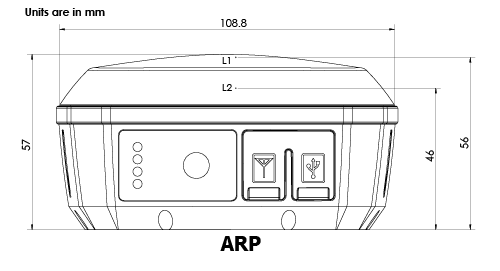

| Geode GNS3M | |
|---|---|
| Antenna L1 phase center offset | 55.9 mm |
| Antenna L2 phase center offset | 46.3 mm |
| Antenna reference point | Receiver case bottom |
| Brand code | JUN (Juniper Systems, Inc.) |
| Antenna code | JUNGEODEGNS3M |
| Radome code | None |
| Antenna reference point (ARP) | Bottom of antenna mount (BAM) |
| North reference point | Man-machine interface (MMI) |
