YOUR OFFICE, ANYWHERE.

The Mesa 4 Rugged Tablet running Windows 11 offers powerful new functionality while retaining impressive features from the popular Mesa 3 Rugged Tablet. Its latest generation Intel® processor is ready to run even the most demanding field data collection applications, and its rugged ergonomic design is ready to handle a long day on the job in some of the harshest environments out there. Ready to experience Juniper Rugged? Reach out to our team to pre-order today: 435-753-1881.

Request Pricing

designed and assembled in USA logo

DESIGNED AND ASSEMBLED IN THE UNITED STATES

Juniper Systems tablets, handhelds, and sub-meter GPS receivers are designed and assembled in the United States. Juniper Systems takes pride in the level of quality we achieve with every device leaving our doors. Each device is carefully crafted to meet the needs of its intended user.

Everything happens under one roof, from product design to engineering to manufacturing at Juniper Systems' Logan, Utah, USA facility. This allows each product to undergo extensive testing for quality, durability, and performance.

MESA 7-INCH WINDOWS COMPARISON

This comparison guide outlines the differences between the Mesa 4 and Mesa 3 Windows rugged tablets.

MESA 4MESA 3
PROCESSOR
  • Intel® N200 (Launched 2023)
  • Intel Pentium N4200 (Launched 2016)
RAM
  • 8 or 16 GB LPDDR5
  • 8 GB LPDDR4
STORAGE
  • 128 or 256 GB NVMe SSD
  • 128 or 256 GB Flash Storage
OS
  • Windows 11 Pro
  • Windows 10
become a partner logo

BECOME A JUNIPER PARTNER

At Juniper Systems, we seek to establish strong relationships with companies that offer total data collection solutions to markets in agriculture, natural resources, industrial, geospatial, public works, military, oil and gas, utilities, public safety, construction, and more. We offer high-quality, rugged handheld computers and sub-meter GPS receivers with long-term reliability, excellent customer service, and unique product customization. If you’re looking for a reliable, rugged handheld device or GPS receiver for your solution, as well as a long-term business partner, contact us today.

Experience performance and efficiency

The Mesa 4 contains CPU performance that is up to three times faster than its predecessor, the Mesa® 3. Multitasking is just a few clicks away with this snappy and efficient processor. Featuring a 3.7 GHz peak processor speed and up to 16 GB of RAM, Mesa 4 truly takes your office computer and puts it in your hands. This all creates the ability to seamlessly execute tasks, process demanding applications, and minimize energy consumption to preserve battery life. Even with these performance increases Mesa 4 has longer battery runtimes when compared to Mesa 3 in the same tests. Visit our blog for a detailed look at what to expect from the Mesa 4.

The shift to implement an NVMe PCIe SSD for data storage brings performance gains of up to six times the read and write speeds of the flash storage found in the Mesa 3, creating the ability to launch programs quickly, save large data sets in seconds, and allow for quick boot times. The Mesa 4 has NVMe SSD options of 128 GB and 256 GB.

The Mesa 4 provides a fast and responsive mobile experience, with cellular speeds up to three times faster than that of Mesa 3. The CAT 12 modem allows for faster data transfer, upload and download speeds, and the seamless backing up of files. The heightened cellular speed also allows for easy real-time communication via chat and video calls.

VIDEOS

MESA 4 SPECIFICATIONS

PROCESSOR

  • Intel® N200, 3.7 GHz burst
  • OPERATING SYSTEM AND SOFTWARE
  • Microsoft® Windows 11 Pro
  • Multiple languages supported (English, French, Spanish, German, Portuguese)

MEMORY

  • 8 GB LPDDR5 or 16 GB LPDDR5
  • STORAGE
  • 128 or 256 GB PCIe SSD
  • MicroSDXC card slot

WIRELESS CONNECTIVITY

  • Long-range Bluetooth® Smart Ready wireless technology, v5.3 + EDR, Class 1.5, BLE support
  • Wi-Fi 6 (802.11 ax), 2.4 GHz and 5 GHz Wi-Fi 6E
  • 4G LTE multi-carrier capable

GRAPHICS

  • Intel® Gen12 UHD Graphics

DISPLAY

  • Active viewing area: 7" (178 mm)
  • Resolution: WXGA (1280 x 800)
  • High-visibility backlit LCD for best-in-class sunlight view-ability (800 NITS typical)
  • Portrait or landscape orientation with automatic screen rotation, with locking feature

TOUCHSCREEN

  • Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions
  • Optically bonded for increased visibility and strength
  • Chemically-strengthened Dragontrail™ HW cover glass for excellent impact and scratch resistance

KEYPAD

  • Adjustable LED backlit keys
  • Four-way directional navpad
  • Windows key
  • Power key
  • Enter key
  • Three user-programmable function keys
  • OEM configurable/customizable

JUNIPER RUGGED™

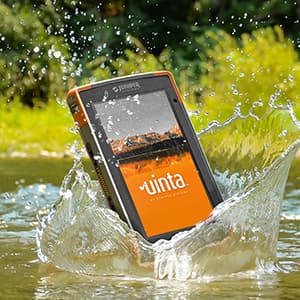

  • IP68 waterproof & dustproof
  • Operating temperature: -4 F to 122 F (-20 C to 50 C)
  • Storage temperature: -22 F to 158 F (-30 C to 70 C)
  • Shockproof: multiple drops from 4′ (1.2 –1.5 m) onto concrete
  • Designed to meet MIL-STD-810H test procedures: Method 501.7 High Temperature; Method 502.7 Low Temperature; Method 503.7 Temperature Shock; Method 507.6 Humidity; Method 514.8 Vibration; Method 516.8 Shock

PORTS

  • 12V DC power input jack
  • USB-A (5 Gbps)
  • USB-C (5 Gbps, power delivery, DisplayPort)
  • Optional RS-232 9-Pin D-Sub connector with configurable 5V DC or 12V DC power output
  • Docking connector (Power, USB 2.0)
  • Loud output speaker for noisy environments
  • Dual digital microphone input

BATTERY

  • Removable Li-Ion battery, 43.2 Wh
  • Removable battery, easily changeable in field
  • Optimized for strong performance in cold temperatures
  • Excellent lifecycle performance
  • Optional internal 21.6 Wh battery provides hot-swap capability

PHYSICAL

  • Size: 5.40" w x 8.48" l x 1.36" d (137 x 215 x 35 mm)
  • Weight: 1.5–2 lbs (680–907 g) depending on battery and expansion configuration
  • Durable, chemical- and shock-resistant design
  • Easy-to-grip, impact-absorbing, overmolded bumpers
  • Lightweight and ergonomic design

GPS/GNSS (GEO MODELS)

  • 2 to 5 meter accuracy NSSDA
  • Quectel LC79H Dual Frequency GNSS receiver and integrated antenna
  • Integrated real-time SBAS receiver (WAAS, EGNOS, etc.)
  • 135 GNSS tracking channels
  • Optional: external antenna port

BARCODE 1D/2D IMAGER (BARCODE MODELS)

  • Optional built-in barcode imager and decoder
  • Symbologies: all common 1D and 2D (PDF417, MicroPDF417, Composite, RSS, TLC39, Data matrix, QR code, Micro QR code, Aztec, MaxiCode, Postal codes, etc.)
  • Programmable trigger button
  • Visible aiming bullseye with low-light illumination
  • Barcode Connector™ utility, wedge and configuration, SDK support available

CAMERA

  • Rear: 13 MP with LED illumination
  • Front: 5 MP

OTHER FEATURES

  • Ambient light sensor
  • Compass
  • Accelerometer
  • Gyroscope
  • TPM (Trusted Platform Module) v2.0
  • Firmware TPM

CERTIFICATIONS AND STANDARDS

  • FCC and ISED Certification (USA and Canada)
  • FCC Class B and ICES-003 Class B (USA and Canada)
  • CE Marking (EU Radio Equipment and RoHS Directives)
  • ACMA RCM (Australia)
  • United States Toxic Substances Control Act (TSCA)
  • California Prop 65
  • Canada Prohibition of Certain Toxic Substances
  • EU REACH, EU POP, SCIP, WEEE
  • Optional Hazloc: Class I, II, III, Div 2, Groups A, B, C, D, F, G
  • SCIP
  • WEEE

STANDARD ACCESSORIES

  • Standard removable battery
  • AC wall charger with international plug kit
  • Capacitive small-tip stylus w/tether
  • Quick Start Guide
  • Hand strap
  • Connector port dust cover
  • 2-year warranty

CUSTOMIZATION

  • Available upon request
Customize  Background

CUSTOMIZATIONS, CONFIGURATIONS, AND INTEGRATIONS

Juniper Systems is proud to offer a variety of customization, configuration, and integration options. By building our devices to order, users can configure the device that best fits their needs. With various levels of customization available, users can do anything from a simple custom branding to a fully modified rugged tablet. Our devices are also built for integration with various sensors, expansion areas, and other unique functions. To learn more, visit our OEM and customization page.

customized tablet examples

START CUSTOMIZING
