Long-Range Barcode Reader for Mesa 4 Windows

10 Feb 2025

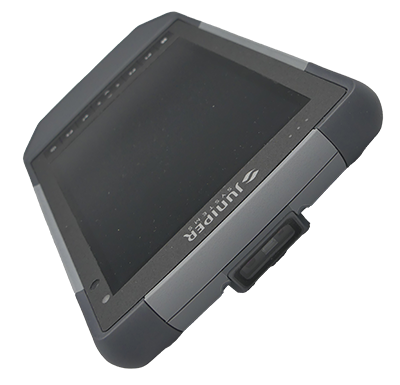

The Mesa 4 with long-range barcode imager reads 1D and 2D barcodes and imports barcode data into custom or standard programs running on the Mesa 4.  The barcode imager is located on the top of the Mesa 4 when in portrait mode.


Access the long-range barcode imager from the Barcode Connector™ utility, a program included with the barcode imager. Instructions for running a scan test and Barcode Connector settings are included in the Mesa 4 User Manual, 3.2 Barcode Imager. If Barcode Connector is not available, download it from https://junipersys.com/support/article/13028.

Junipers Systems offers a pistol grip that reduces strain and maximizes productivity for heavy barcode scanning applications. The grip meets MIL-STD-810G. Find it at Mesa 7-inc Barcode Pistol Grip with Captive Screws.

Reading a Barcode

To scan a barcode,

  1. Open and minimize Barcode Connector.
  2. Open an app or a document where you want to receive the barcode data and put the cursor where you want to place the data.
  3. Aim the barcode imager at the barcode. The distance required between the barcode and Mesa 4 varies depending on the barcode being read.
  4. Aim the red LED at the barcode.
  5. Press the scan button. If the scan is successful, the barcode information is placed in your app or document.

Clean the Barcode Window

Avoid scratching the barcode window to ensure optimal scanning. For cleaning, use clean water (tap is fine) to remove any debris and a microfiber cloth to remove smudges. When needed, use an ammonium-free window cleaner to remove hard water marks. Spray the cleaner on a microfiber cloth and then wipe the window clean.

Specifications

See Mesa 4 User Manual, Specifications for additional detail.

Feature Specification
Barcode Imager and Decoder SE5500 imager
Sensor Resolution
  • 2588 horizontal x 1520 vertical pixels in 4MP mode
  • 1344 horizontal x 760 vertical pixels in 1 MP mode
Sensor 4 megapixel* for decoding barcodes and capturing high resolution images*
Field of View*

Adaptive FOV

  • Horizontal: 19º to 37º
  • Vertical: 11º to 21º
Reading Angles*
  • Skew Tolerance: ±60°
  • Pitch Angle: ±60°
  • Roll: 360°
Read Range 2.2 in. – 40 ft.
Symbologies Virtually all 1D and 2D barcodes
Aiming
  • Green dash-dot-dash pattern on a rectangular background
  • Visible with low-light illumination
  • Wide
Laser Wavelength 520 nm
Laser Power for Classification 8.8µJ
Beam Diameter <3mm at apature
Divergence Not applicable
Mode of Operation Pulsed, 2ms, 60Hz
Maximum Laser Power Output 2.0 mW, pulsed
Barcode Connector Utility Wedge and configuration
Power:  Active, low-power (when Barcode Connector is closed or the Mesa 4 is in suspend mode)
Physical Features
  • Weight*: 2 lbs (925 g)
  • Weight with pistol grip*: 2.2 lbs (1036 g)
  • Dimensions: 5.4 in. wide x 8.48 in. long x 1.36 in. thick (137 mm x 215 mm x 35 mm)

* Varies with battery configuration and internal options.

Certifications and Standards
  • FCC Class B
  • CE Marking
  • Industry Canada
  • Australia (ACMA)
  • Bluetooth® SIG qualification
  • IP68 water resistant and dustproof
  • Designed to MIL-STD-810H
  • RoHS 2 compliant
  • Mesa 4 is certified on AT&T networks
  • MIL-STD-461F: Complies with HERO emissions test IAW with safe distance requirements from AFI91-208
  • Hazloc Class I, II, III Div 2
  • IEC 60825-1 Class 2 laser

Laser Information

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

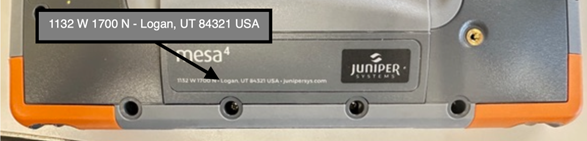

The long-range barcode reader for Mesa 4 is manufactured by Juniper Systems, 1132 W 1700 N, Logan, UT 84321, USA.

Class 2 Laser Product

The laser can be activated by either

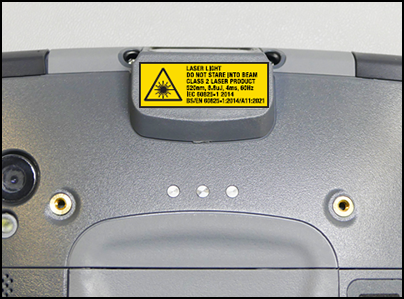

The laser warning is located below the barcode reader window on the back of the Mesa.

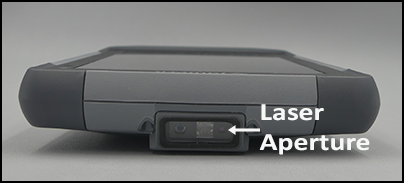

When a barcode is scanned, laser radiation exceeding the Class 1 AEL is emitted from the barcode reader window (as indicated in the picture below).

The long-range barcode reader for Mesa 4 Windows does not require any scheduled maintenance to keep the product in compliance.

This product is designated as Class 2 during all procedures of operation.

Warning: LASER LIGHT. DO NOT STARE INTO BEAM. CLASS 2 LASER PRODUCT.

Warning: Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects.

Warning: Do not operate device if it is defective or damaged.

Warning: Exposure of eyes or skin to laser radiation is a potential hazard.

Warning: Service work is not allowed by the user or other unauthorized personnel. Service or repair is only permitted by factory authorized technicians.

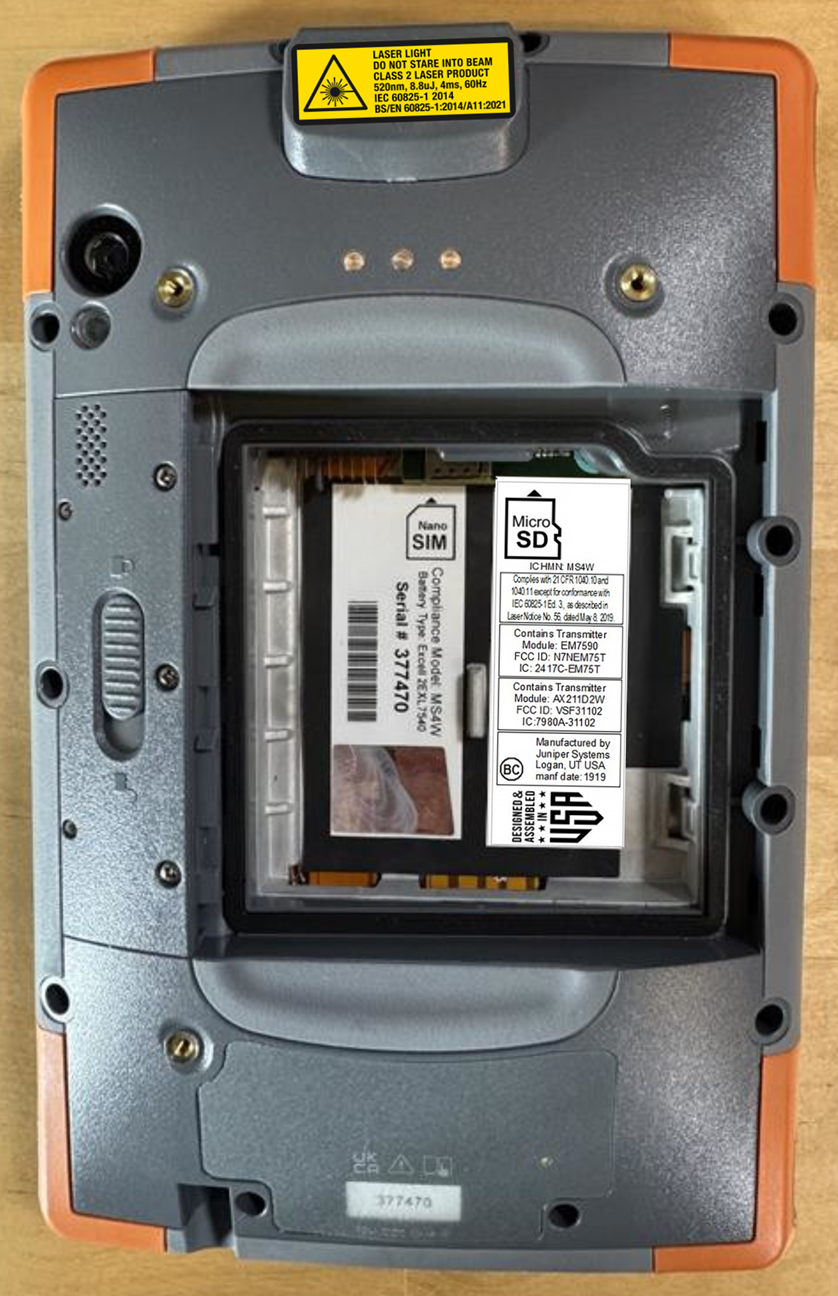

Warning: Do not open the device, except for access to the battery compartment for changing the battery, micro SD card, or nano SIM.

The long-range barcode reader available with Mesa 4 complies with:
